    Combined 40ft Prefabricated Data Center , DCIM Modular Data Center Construction

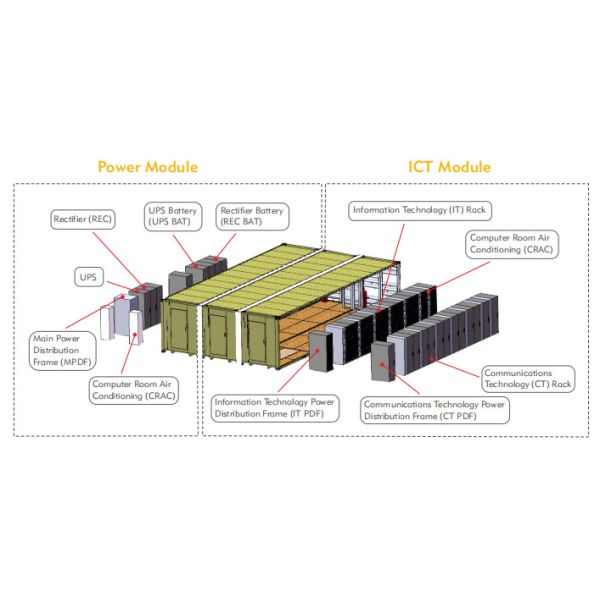

    Combined 40ft All-in-one Prefabricated Data Center

    Power Module1

    The power module is a single ISO40HC container with four levels of power capacity that can be upgraded from the basic configuration to
    480kW ICT load capacity in steps of 120kW each. Internal arrangement has been designed to allow the upgrade by installing additional power
    equipment. Multiple Power Modules can be combined to support even high ICT load.


    ICT Module1

    Two ICT module designs are available to suit different cabinet depth. They can be combined in different configurations to meet various
    operation requirements. Expansion is easy just by adding more modules. Combined with the Power module, there is always a configuration
    that meet your requirement.


    General Specifications

    Fire ProtectionTypeAutomatic fire detection (smoke and heat) with
    gas suppression system (HFC-227ea)
    Monitoring and
    Management
    Access ControlElectronic lock with IC card reader
    MonitoringVideo: Infrared IP cameras
    Data: PDF, UPS, DC, A/C, Temp & Hum, fire protection, access control and ventilation
    HMITouch screen
    Remote AccessWeb, App
    NotificationSMS, email
    DCIMOwlEye
    StructureContainer Dimensions (W x D x H): mm12192 x 2438 x 2896 (ISO40HC)
    Container Weight (Fully Equipped): T<25
    Protection LevelIP552
    Environmental
    Conditions
    Working / Storage Temperature: °C-20 to 453 / -40 to 70
    Humidity: %5 to 95
    Altitude: m≤4000 (derating start >1000)
    CorrosionClass C (500m away from seashore)

    Notes:

    1 - Consult 3Tech for customized versions with Tier 3 reliability level or different ICT design load.

    2 - Optional IP65 protection level.
    3 - Optional maximum temperature up to 55°C.
